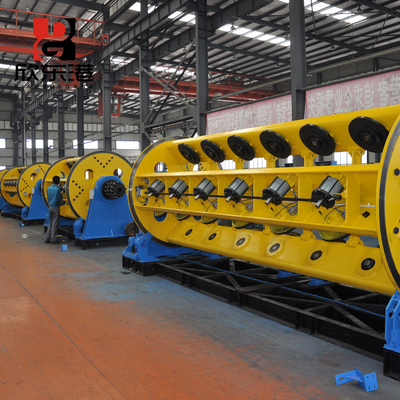

Name: CC/AC/ACSR Manufacturing Super Quality Rigid Frame Stranding Machine For Electrical Cable Stranding Wire Manufacturing
Brand: CC/AC/ACSR Manufacturing Super Quality Rigid Frame Stranding Machine For Electrical Cable Stranding Wire Manufacturing
SKU: JLK500/6+12, JLK Series
Price: 1 USD
Availability: InStock
Rating: 4.9 (176 reviews)

traits Galerie Description de produit Demandez une citation

traits

Caractéristiques

Model Number: JLK500/6+12

Usage: Stranding

Model: JLK Series

Single wire diameter: Copper1.5~4.5; Al 1.8~5 mm

Stranding diameter: 25mm

Rotating speed of cage: 190~68rpm

Stranding Pitch: 35-761mm

Application: CC/AC/ACSR manufacturing

Color: Customized

Informations de base

Model Number: JLK500/6+12, JLK Series

Conditions de paiement et expédition

Description de produit

Product Description

Features

As a result of technical innovation and optimized design, rotating speed of the stranding case Applicable to stranding copper conductor, aluminum conductor, and aluminum conductor steel reinforced (ACSR) without backtwist, as well as insulated wire and strand. Fitted with a compactor, it is also applicable to stranding round-shaped, semi-round-shaped, and sector-shaped copper conductor or aluminum conductor. Configuration 1.Basic: FN1600 end-shaft pay-off stand, stranding cage, hanger for individual bobbin loading, adjustable closing die stand, main reducer and 36-gearbox, length counter, twin motorized capstans with natural conductor divider, φ2500 end-shaft take-up with traversing unit, DC motor and DC speed regulator, electric control cabinet and operation desk, sliding safety fence. 2.At user’s option: shaft-type pay-off stand, batch loader, ultrasonic controller for tension from bobbin, closing die stand and roller compacting unit, gantry travel take-up with traversing unit, AC motor and variable frequency speed regulator, curved sliding fence or motorized rotating safety fence.

Specification

Technical Parameters of JLK 500 Series

Model	Single wire diameter (mm)	Stranding diameter (mm)	Rotating speed of cage (rpm)	Stranding Pitch (mm)
JLK500/6+12	Copper1.5~4.5; Al 1.8~5	25	190~68	35~761
JLK500/6+12+18			35	190~58	35~892
JLK500/12+18+24			45	162~49	41~1052

Technical Parameters of JLK 630 Series

Model	Single wire diameter (mm)	Stranding diameter (mm)	Rotating speed of cage (rpm)	Stranding Pitch (mm)
JLK630/6+12+18+24	Copper1.5~4.5; Al 1.8~5	45	207~54	38~1104
JLK630/12+18+24	Copper1.5~4.5; Al 1.8~5		45	176~54	45~1104
JLK630Z/6+12+18	Copper 1.5~4.5; Al1.8~5	35	207~64	38~930
JLK630Z/6+12+18+24			45	207~54	38~1104
JLK630Z/6+12+18+24+30			55	207~45	38~1324
JLK630Z/12+18+24			45	176~54	45~1104
JLK630Z/12+18+24+30			55	176~45	45~1324

Technical Parameters of JLK 710 Series

Model	Single wire diameter (mm)	Stranding diameter (mm)	Rotating speed of cage (rpm)	Stranding Pitch (mm)
JLK710X/6+12+18	Al 1.8~5; Al shaped wire (diameter equal to 2.8~6.0)	35	156~48	37~924
JLK710X/6+12+18+24			45	156~42	37~1041
JLK710X/12+18+24			45	132~42	44~1041

Company Profie

Deyang Xindonggang Mechanical and Electrical Equipment Co.,Ltd/XDG（predecessor company name :Deyang Dongjiagang Mechanical & Electrical Equipment Co.,ltd hereinafter referred to as EBP) established in September 2017,is a High Tech Enterprise and Specialized in the research and development,XDG have more technical expert ,and senior Engineers ,and organized research and development team ,In the absorption of the latest foreign technology, through in-depth research and exploration, to create a function, structure, technology, materials to update products.
